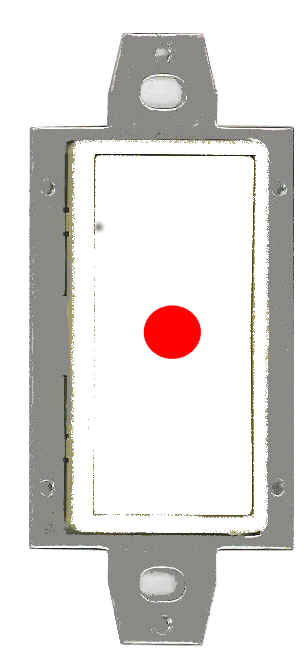

LO-IR

Combination Mounting Bracket/IR receiver for IMC-100 Controllers

The Linkable Option-IR (LO-IR) is an ingenious dual purpose mounting bracket/infrared receiver for the the IMC-100 family of intelligent motor controllers. A quick-mount system allows the LO-IR to be quickly attached to the IMC-100 controller so that the set can be mounted into a single gang outlet box. The mounting kit is ETL approved to UL 325 and enables an IMC-100 to have IR capability wherever it is mounted!

Built-in Infrared Receiver

The LO-IR is an easy way to add infrared functionality to any IMC-100 controller. Simply plug in kit into front of IMC-100 and IR capability is immediately available for one or more IMC-100 controllers. Software tools permit customization of IR addressing to enable received IR data streams to control the attached IMC-100 or any number of additional CS-bus compatible controllers anywhere on the CS-Bus.

Easy J-Box Installation

Small format mounting bracket enables IMC-100 to be mounted in nearly any plastic or metal single gang J-boxes (or larger). The included Decora mounting plate serves a dual purpose function by finishing the installation and providing a protective cover plate for the IR receiver.

Safety Agency Approval for J-Box installation.

This mounting option is a safety agency approved method for mounting the IMC-100 into a J-box. When properly installed, low-voltage and line-voltage wires enter the J-Box with appropriate separation to achieve approval under UL 325.

Attractive Decora Mounting Plate

An attractive Decora single gang faceplate complements the installation. There is a small IR window to permit infrared communication from compatible remotes.

Specifications

LO-IR Specifications
Product Code:	LO-IR
FEATURES
Function:	Dual function, IMC-100 mounting bracket and built-in infrared receiver for compatibility with a family of infrared remotes compatible with the IMC and ILC product lines
Infrared Support	Allows decoding of infrared signals up to 33 feet away from receiver
CONTROLS/INTERFACES
Control Type	Controls one or more IMC-100 controllers networked together on a CS-Bus
Control:	Infrared Receiver Built-in
Motor Control:	Through attached IMC-100 controller
Bus Specification	CS-Bus compatible
CONNECTIONS
Power Connector:	Power provided through interface connector on front of IMC-100 controller
Network Connection	Through attached IMC-100 controller.
GENERAL
Form Factor	Single gang Decora-type/mounting plate with attractive cover
Compatibility	IMC-100s, IMC-100t, IMC-101s, IMC-101t
Power Consumption:	Nominal. Power provided from attached IMC-100
Dimensions:	103.69mm ×45.32mm ×15.58mm
Weight:	43g
Manufacturing	Made in the USA
COMPLIANCE
Safety Approvals:	PCB UL rated
EMI Testing:	FCC Class B (home and office)
