CS-RF-8T

RF Transmitter for CS-RF-8Kit (replacement)

Replacement Transmitter for CS-RF-8Kit

Extra transmitter for CS-RF-8Kit available separately.

8-Channel Remote Allows Flexibility of Control.

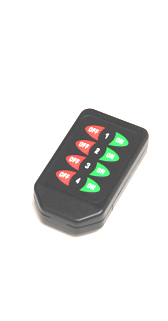

Small handheld unit with 8 channels of control allows typically 6 groups of motors or lights to be controlled with separate UP/DOWN, or ON/OFF buttons

Slimline Design Can be Easily Hidden for RF Operation

Small remote can be clipped on belt or easily kept in pocket. Ideal for situations for line-of-sight s not possible for IR remote control.

Specifications

R-IR Specifications
Product Code:	CS-RF-8T
FEATURES
Function:	Replacement wireless transmitter for CS-RF-8Kit.
CONTROLS/INTERFACES
Control Type	Controls one or more CS-Bus controllers networked together on a CS-Bus
Control:	8 channel control. Typically, 6 groups of motors with UP/DOWN control
Motor Control:	Remote control of IMC-100 Controllers
Lighting Control	Remote control of ILC-100 Controllers
Bus Specification	CS-Bus compatible
CONNECTIONS
Power Connector:	Self-contained battery operated remote
Antenna	Built-in
GENERAL
Form Factor	Small handheld unit
Transmit/Receive Frequency	433 Mhz
Power Consumption:	Internal battery only
Dimensions:	Transmitter Unit: :71.26mm x 41.12mm x 20.71mm
Weight:	31g Transmitter
Manufacturing	Made in the USA
COMPLIANCE
Safety Approvals:	PCB UL rated
EMI Testing:	FCC approved
